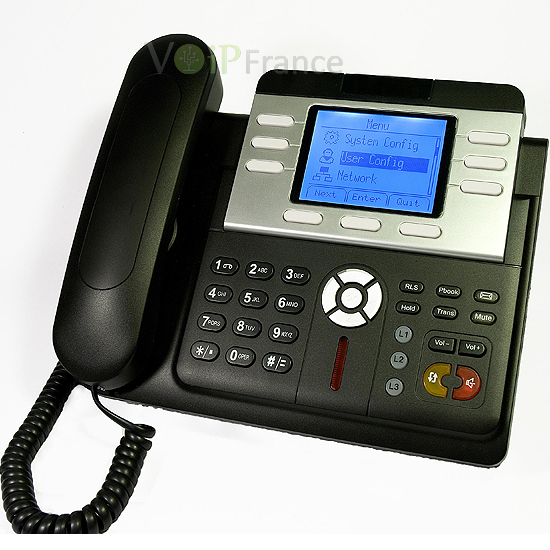

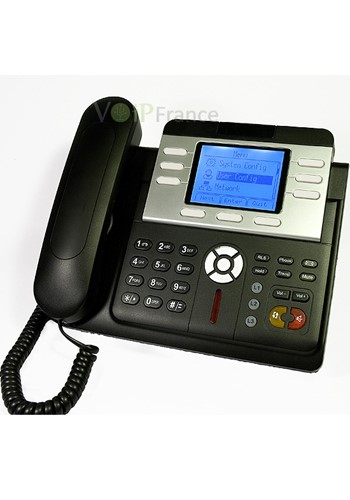

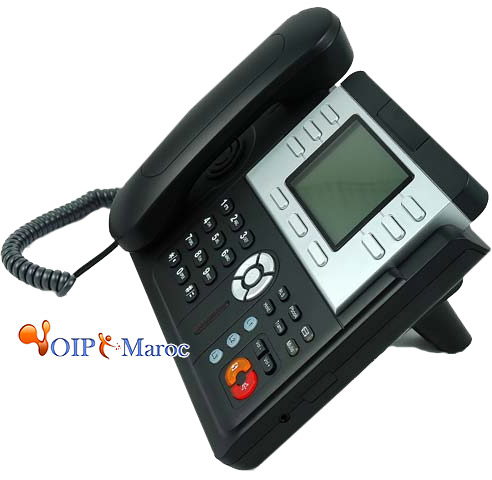

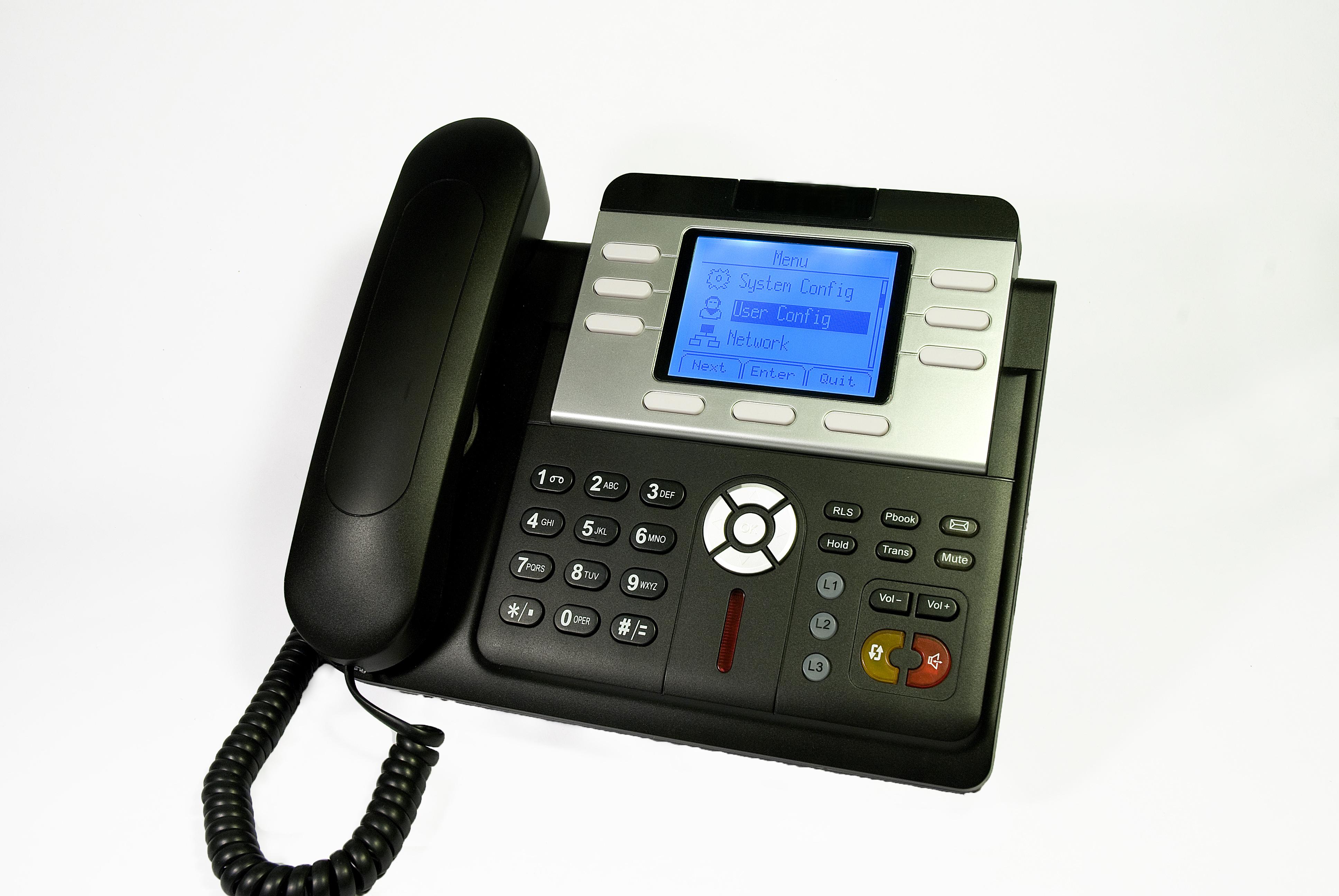

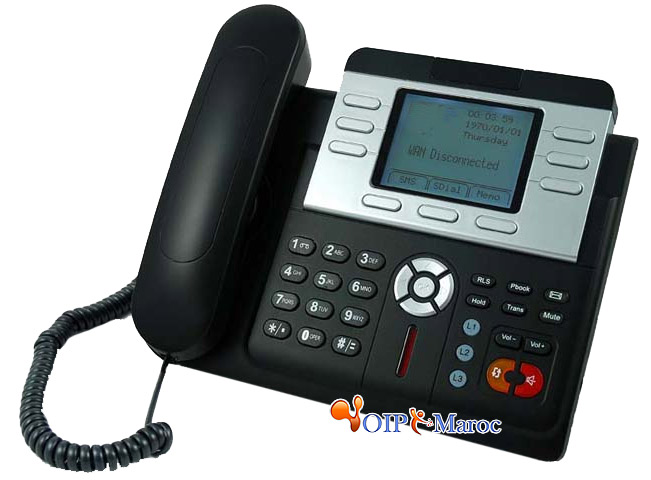

Zycoo ZP502 - Téléphone IP 3 Lignes SIP ou IAX2- POE avec Alimentation


-53%
Quantité

Prix Public : 1 911,47 DH/HT

Votre Prix : 899,00 DH/HT

Economie : 1 012,47 DH/HT - 53%

 VZP502 is a kind of high level voice communication terminal which is based on wide band and independent of PC.With standware SIP 2.0/IAX2 and support G.711 A/U Law,G.722,G.723,G.729.ZP302 provide rich Voip features excellent compatibility across of networ
Disponibilité :  En Stock
Evalutation :



FICHE TECHNIQUE

Interface
Power Input: 100-240VAC Output Power,5VDC,1A.

WAN RJ45，10/100M port.

LAN RJ45，10/100M port.

2 Headset interface (3.5mm Jack or RJ9 connector)

Basic Features
Support SIP 2.0 (RFC3261) and correlative RFCs

Support IAX2

Supports 3 SIP line

Codec:G.711A/u, G.7231 high/low, G.729a/b, G.722,G.726

Echo cancellation: G.168 Compliance in LEC, additional acoustic echo

cancellation(AEC) can reach 96ms max filter length in hands-free mode

Support Voice Gain Setting, VAD, CNG

Full duplex hands-free speakerphone

SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server,

Peer to Peer/ IP call

􀂙 DTMF:Support SIP info, DTMF Relay, RFC2833

Advanced Application Features
Large dot matrix LCD display and softkeys make user easier to use

Friendly graphic menu

2 headset interface ( 3.5mm Jack or RJ9 connector)

6 memory keys

Multilanguage realizes localization

SIP application: support call forward/ transfer (blind/attended/alert)/ holding/ waiting/ 3

way talking/ conference/ paging and intercom/ call park/ pickup/ join call/ redial and

unredial/ click to dial/ vport/secondary dialing automatically/ push to talk

Call control features: flexible dial map, hotline, empty calling no. reject service, black

list for reject authenticated call, white list, limit call, no disturb, caller ID, CLIR (reject the

anonymous call), CLIP (make a call with anonymous), Dial without register

Incoming calls /outgoing calls / missing calls. Each support 100 records.

Support Phonebook 500 records

Support SMS

Support Memo

Support alarm clock

Support Speed dial

Support XML

Network Features
WAN/LAN: 10/100M Ethernet ports

supports Route and Switch mode.

Support PPPoE for xDSL

Support PoE

Support basic NAT and NAPT

NAT transverse:support STUN client

Support DHCP client on WAN

Support DHCP server on LAN

Support main DNS and secondary DNS server.

Support VLAN

Support DMZ

Support DNS Relay, SNTP Client, Firewall

Support VPN (L2TP/UDP TUNNEL),Open VPN/TLS, SRTP security protocol

QoS with DiffServ

Network tools in telnet server: including ping, trace route, telnet client

Maintenance and Management
Web ,telnet and keypad management

Management with different account right

Upgrade firmware through POST mode

Telnet remote management/ upload/download setting file

Safe mode provide reliability

Support Auto Provisioning (HTTP, FTP or TFTP)

Support Syslog

Hardware
CPU: Broadcom BCM1190 275MHz

SDRAM: 128Mbits

Flash: 16Mbits

LCD: 57.54 x 79.2mm

Power Consumption Idle: 2.5W/Active: 2.8W

Operating requirement:
Operation temperature: 0C to 40C (32 to 104F)

Humidity: 10 to 90% no dew

Packing Size
Inner box MEAS 315*290*70 mm

G.W./unit 1.5kg

Nbr, de lignes : 3
Ports Ethernet : 2
PoE : Oui
Protocole : SIP et IAX2
BLF (DSS) : Non
Module d'extension : Non
Interface Casque : RJ9, 2.5mm
Ecran : LCD
Ecran rétroéclairé : Oui
Répertoire n° : 100
Support MWI : Oui
WiFi : Non
Bluetooth : Non
Provisioning Method : HTTP, HTTPS, TFTP, WEB GUI

Téléchargements


ZP502 SPEC_V1.1.pdf
ZP502 User Manual.pdf
